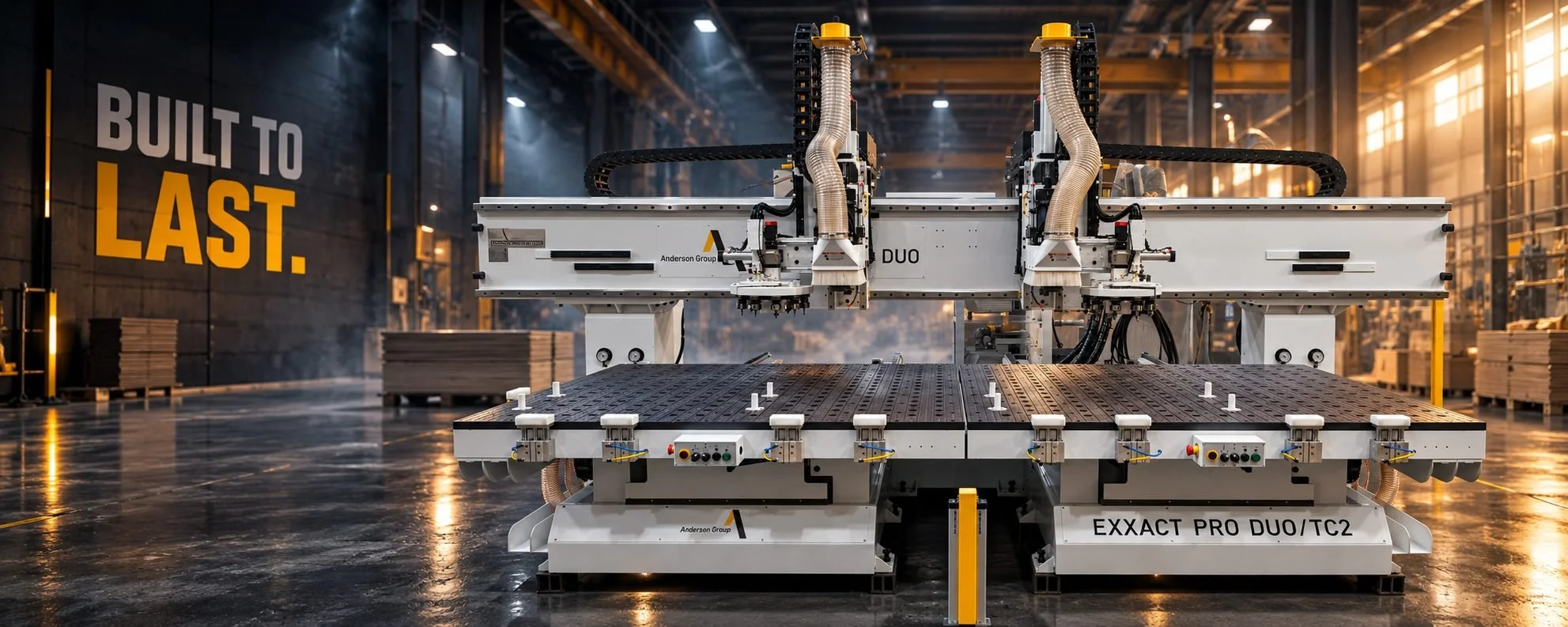

EXXACT
PRO DUO
A heavy-duty fixed bridge CNC router with two moving tables and two 18 HP router heads. Load one table while the other cuts, and keep your spindles running all shift on wood, composite, plastic, and aluminum.
BUILT FOR
HEAVY DUTY
The EXXACT PRO DUO is built on a massive welded steel frame with multiple reinforcements to add strength and absorb vibration. The Z-axis carriage is a Meehanite casting with a pneumatic counterbalance for smooth, accurate motion under load.

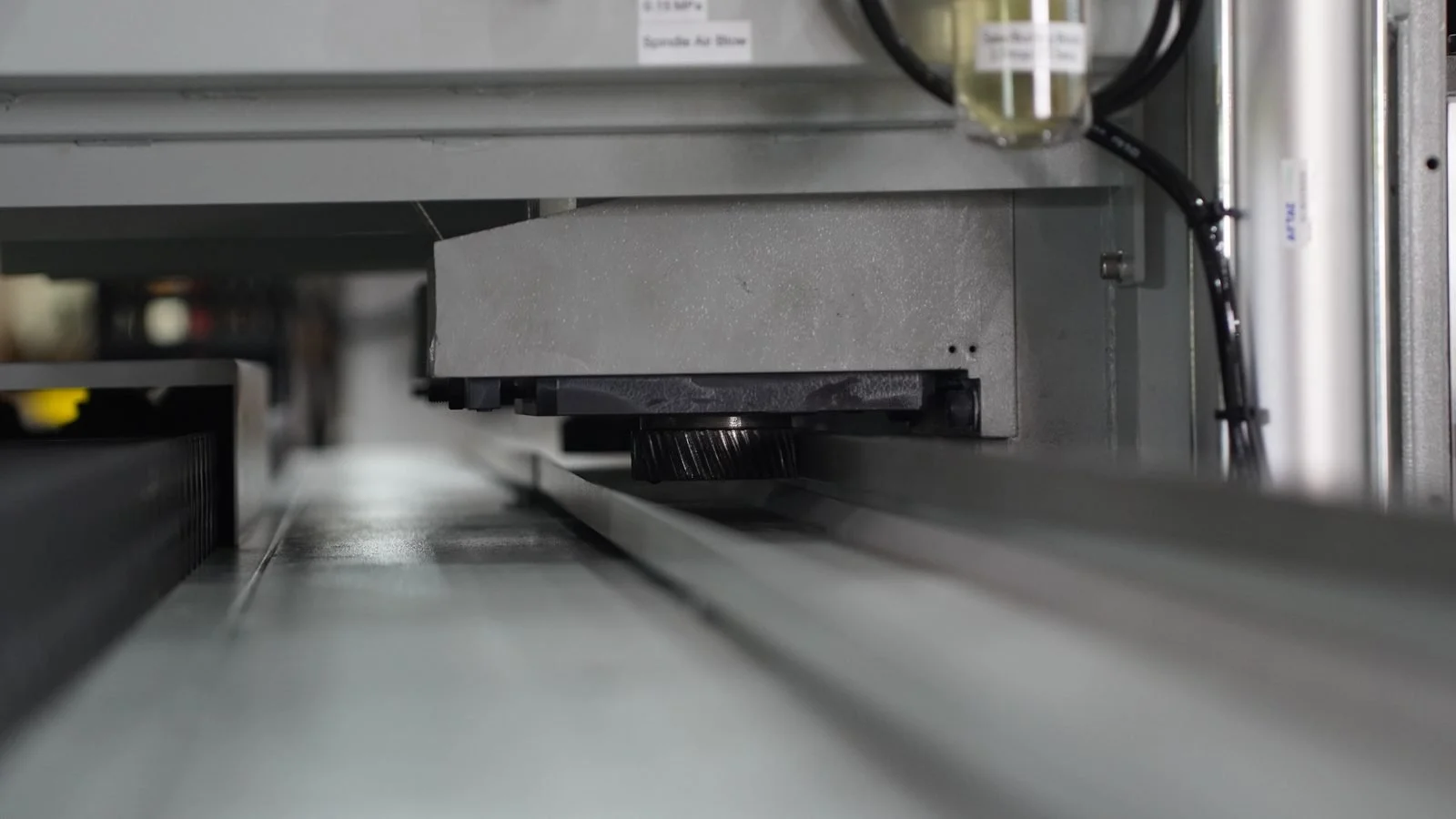

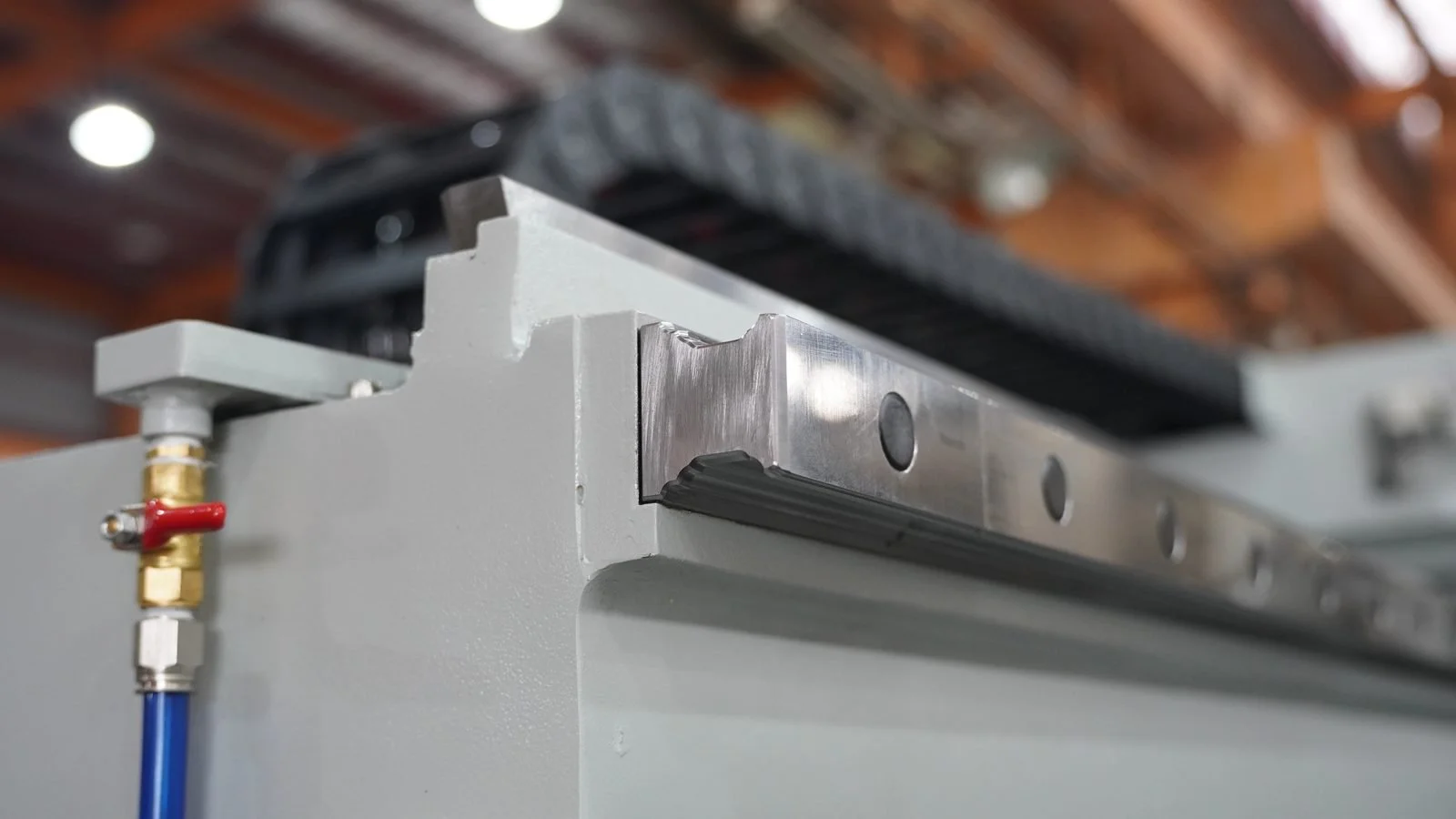

Hardened STAR linear guides with recirculating roller bearings carry every primary movement. X and Y run on aerospace-grade, induction-hardened helical rack and pinion. Z runs on precision-ground ball screws with anti-backlash nuts. Every axis is driven by closed-loop FANUC AC digital servos.
Get a Custom Quote arrow_right_alt
KEY FEATURES
Fixed Bridge Design
The bridge stays put while the tables move the work beneath it. Less moving mass on the gantry means a stiffer machine, a better finish, and tighter tolerances on heavy material.

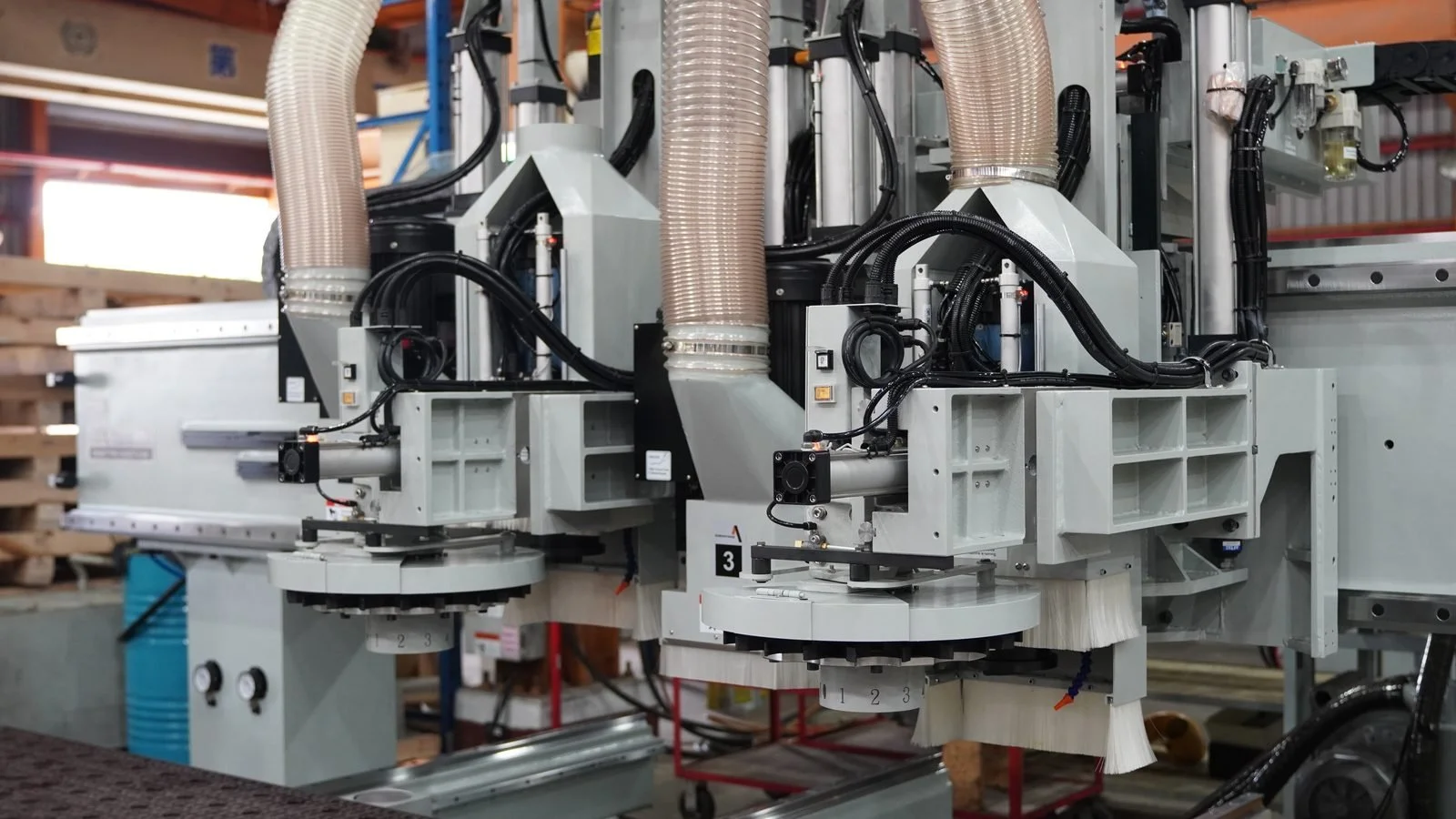

Twin 18 HP Heads

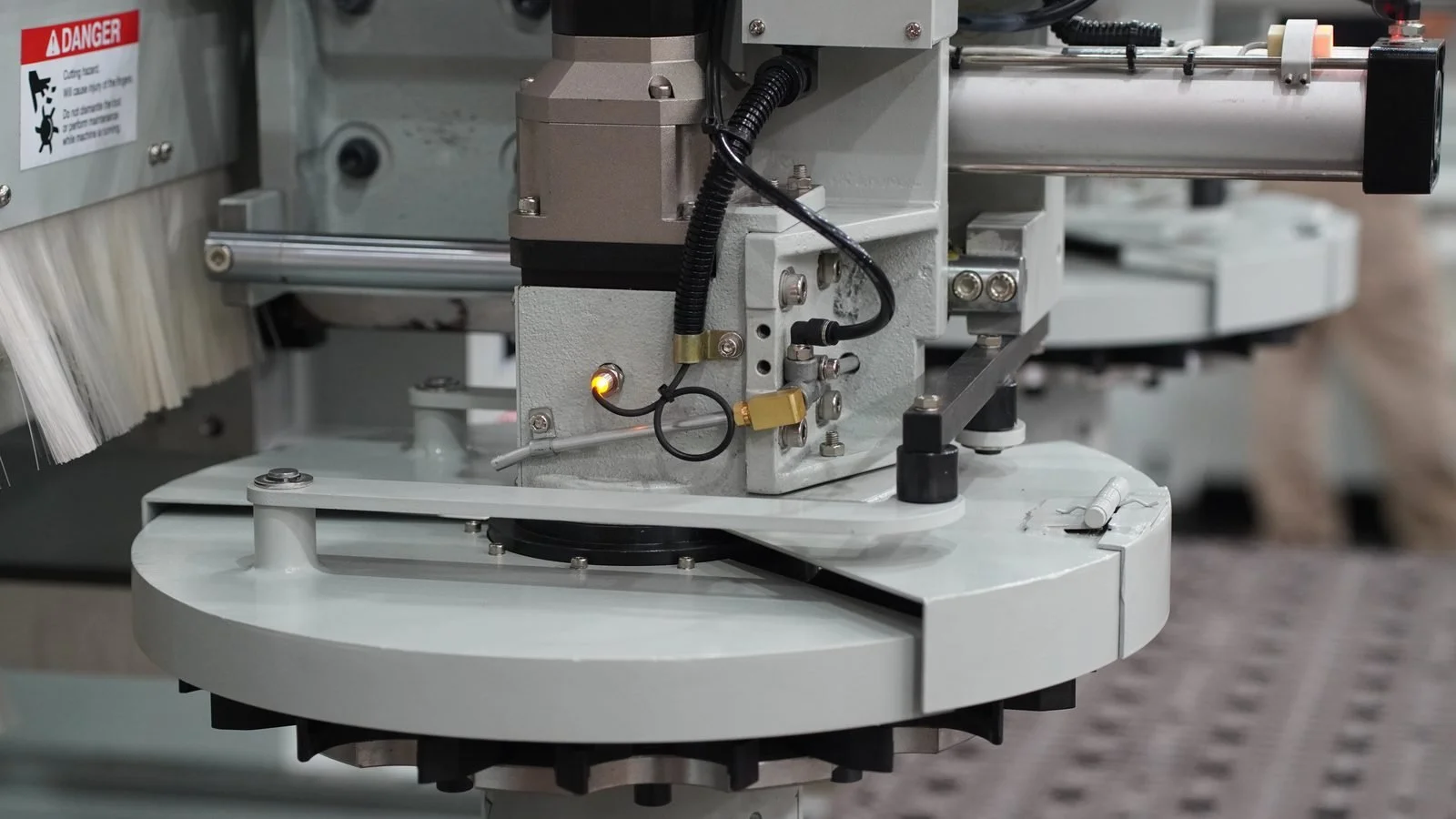

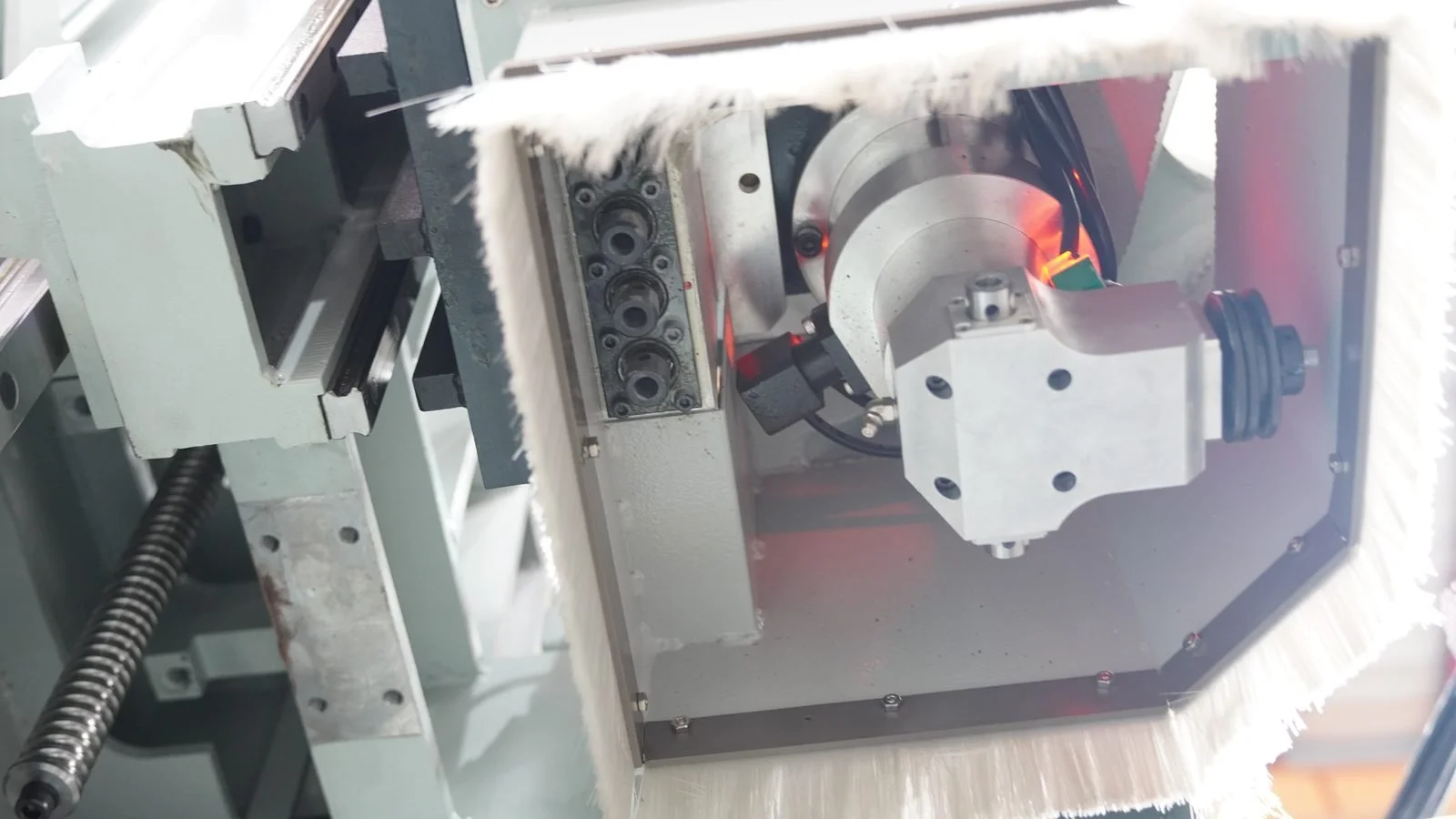

Two Anderson 4-pole air-cooled HSK 63F spindles, each with its own 10-position ride-along tool changer. 24 HP liquid-cooled and 12-position upgrades available.
Variable Head Spacing
CNC-controlled head spacing from 300 to 1800 mm. Run both heads in unison on matching parts, or one at a time while the other sits idle.
Phenolic Grid Tables

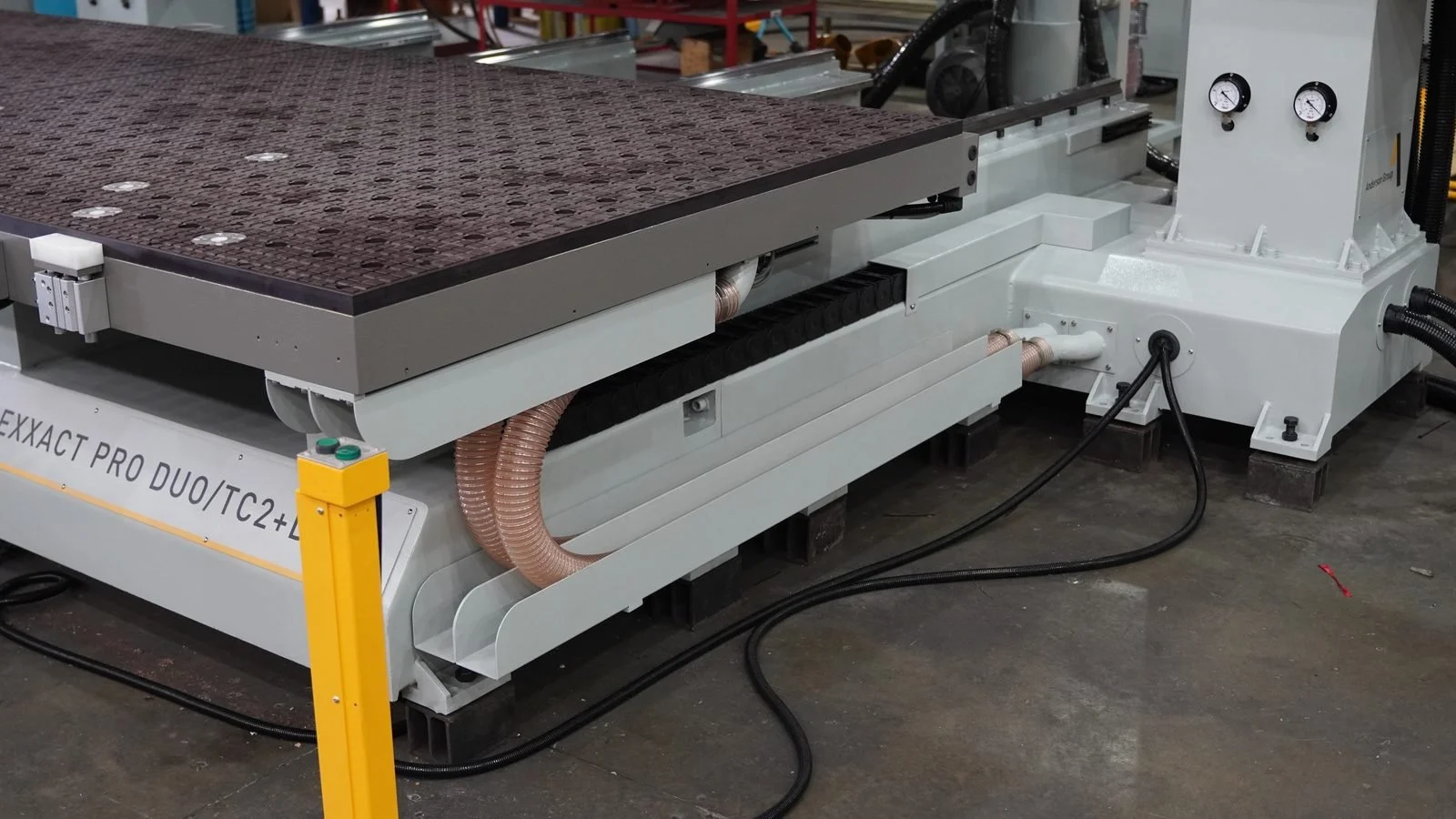

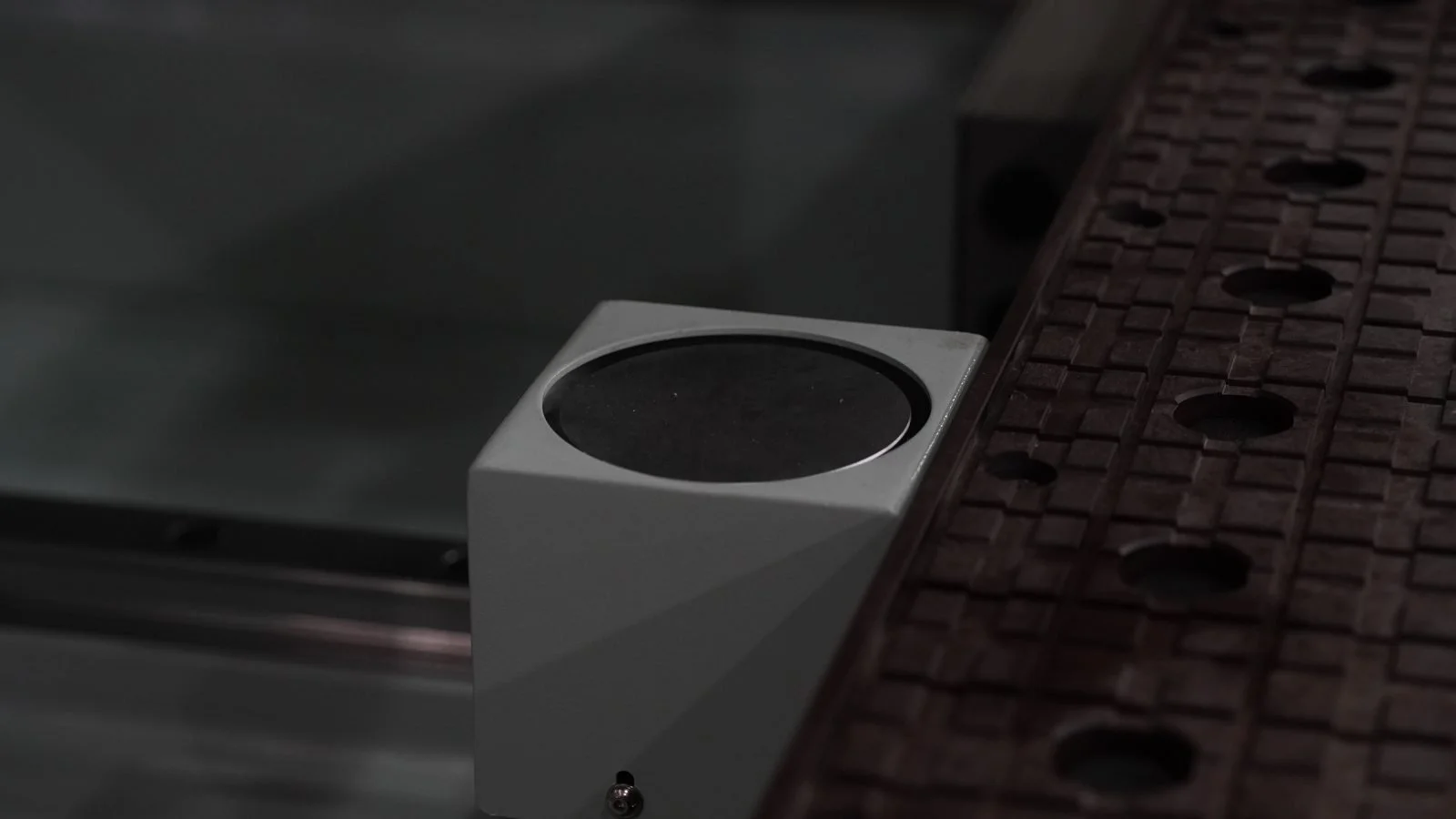

Cast steel tables topped with 30 mm phenolic grid, two M-code vacuum zones each, 16 pop-up pins, and 6 external stops for fast, repeatable sheet location.

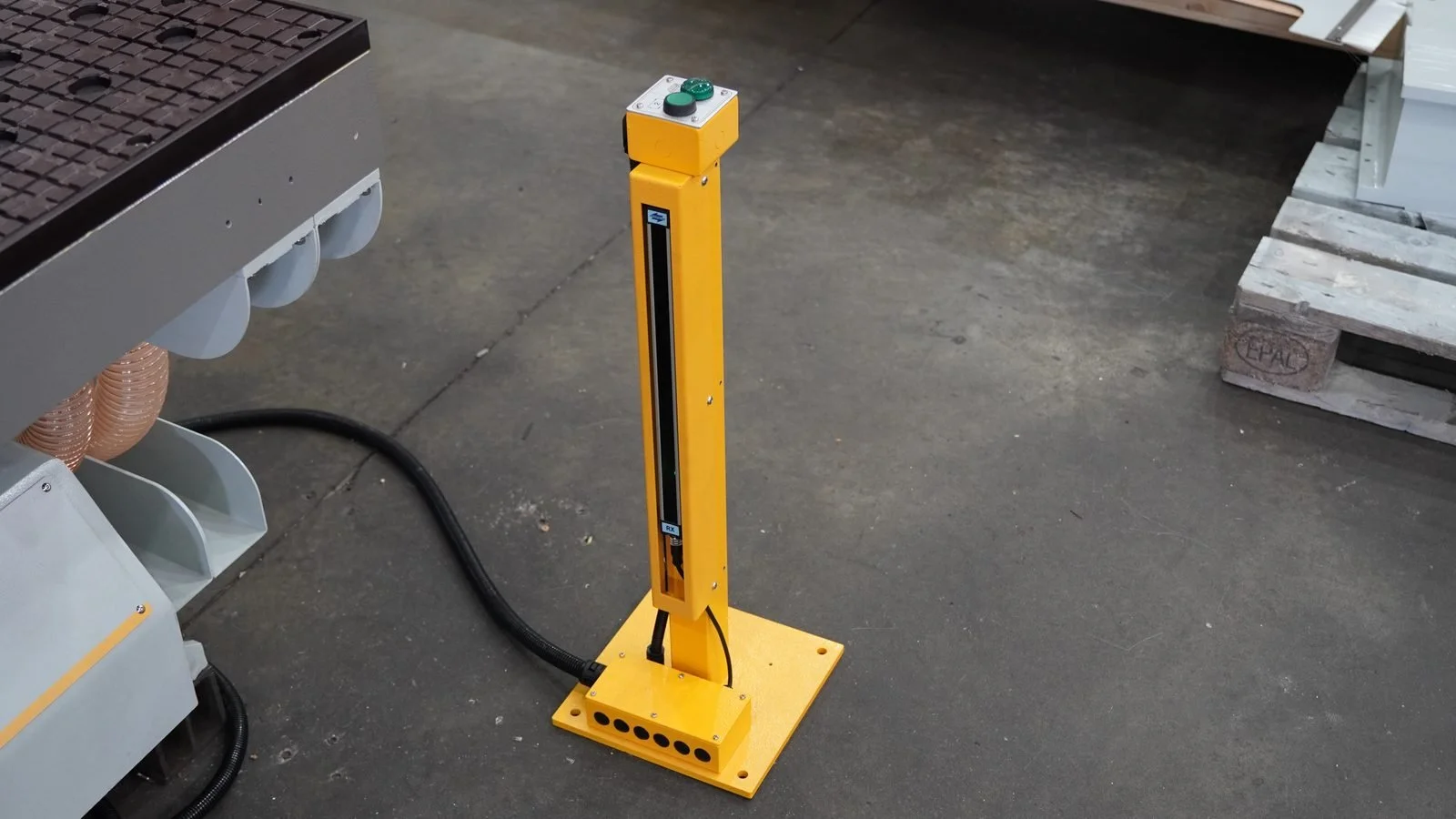

Safety Included
Side safety fences and vertical light barriers across the front of the tables come standard, so operators can load safely while the machine runs.
Free Remote Diagnostics
Network-ready Ethernet for program transfer and data collection, plus free lifetime remote diagnostics and phone support from Anderson America in Charlotte.
ENGINEERED IN THE DETAILS
ENGINEERED FOR HEAVY-DUTY PRODUCTION
THE DUO ADVANTAGE

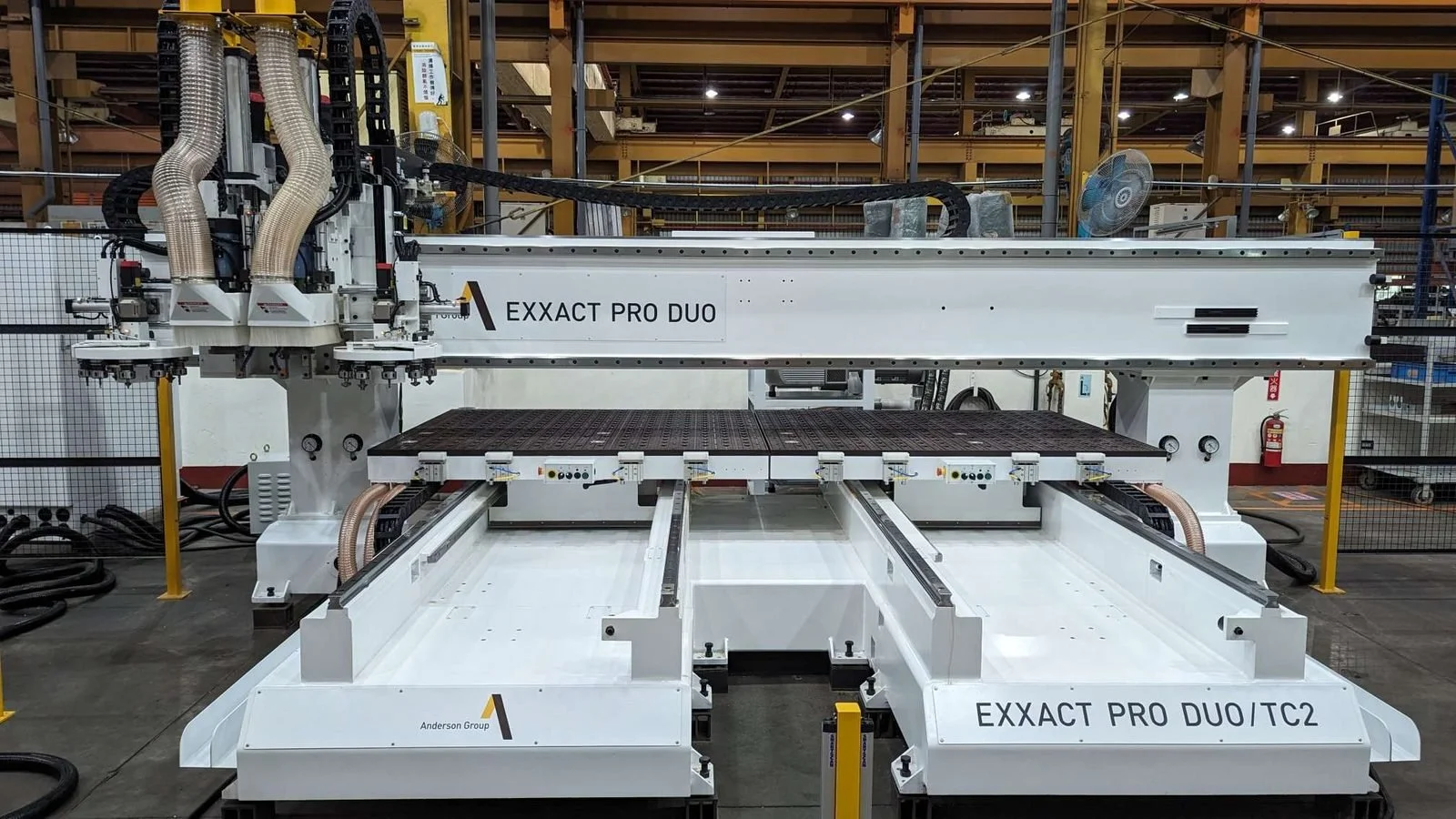

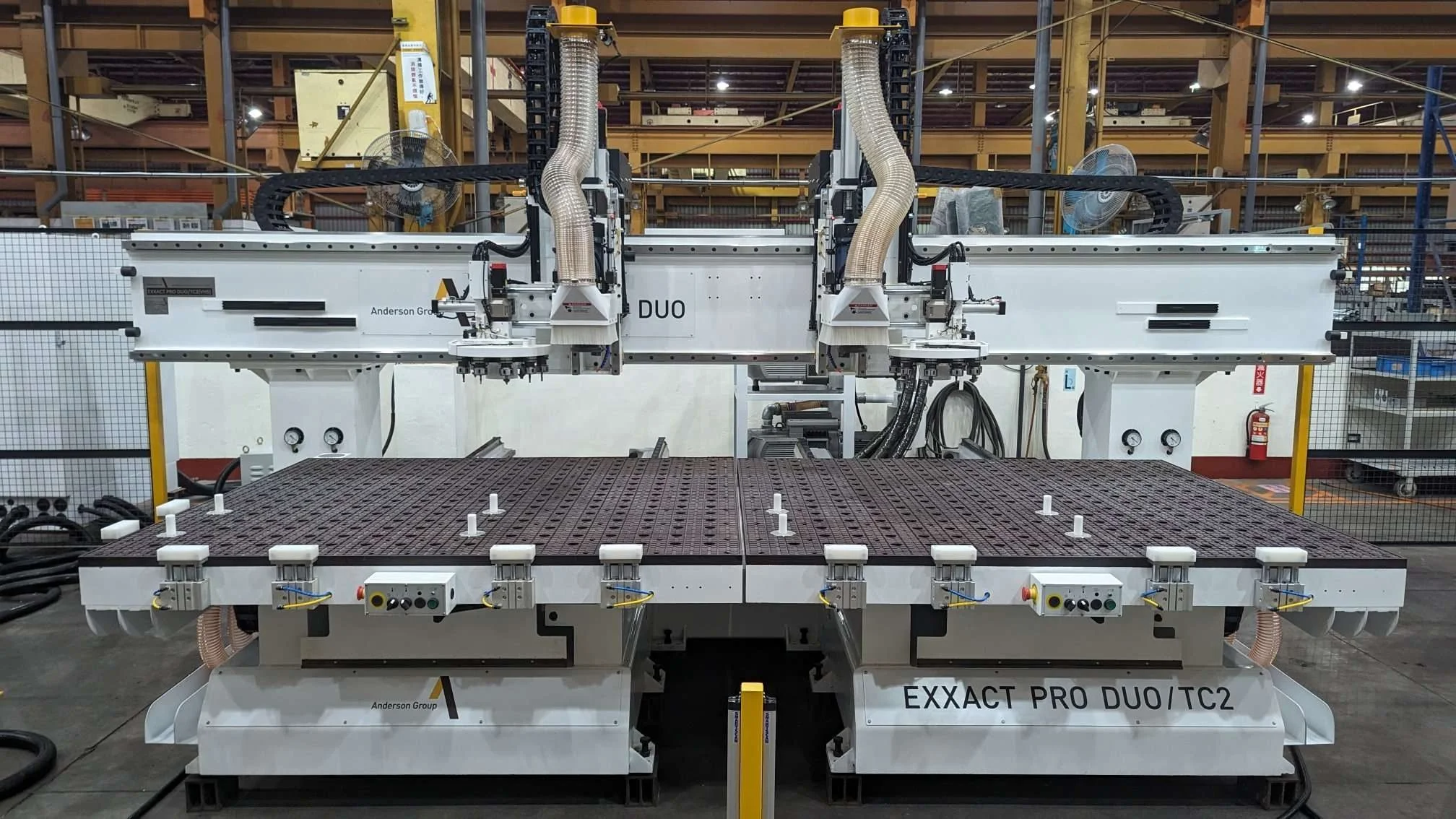

Two independent 1,840 x 1,600 mm tables with two vacuum zones each, and two 18 HP heads with CNC-controlled variable spacing. The EXXACT PRO DUO keeps the spindles cutting while the operator loads.
Pendulum Processing
Cut on Table A while unloading and reloading Table B, then swap. Spindle time climbs without adding floor space or a second machine.
Independent Twin Heads
Both spindles run in unison at any head spacing across the bridge, or one runs while the other is idle. Each head touches off its own tool lengths.
Tool Change Look-Ahead
Included M100 look-ahead lets the idle spindle change tools while the active spindle keeps cutting. The IPT model runs two programs at once.
CHOOSE YOUR PRO DUO
PRO DUO TC2
- Twin tables
- Two 18 HP spindles, 10-position ATC each
- FANUC 0i-MF+ control
- The core twin-head router

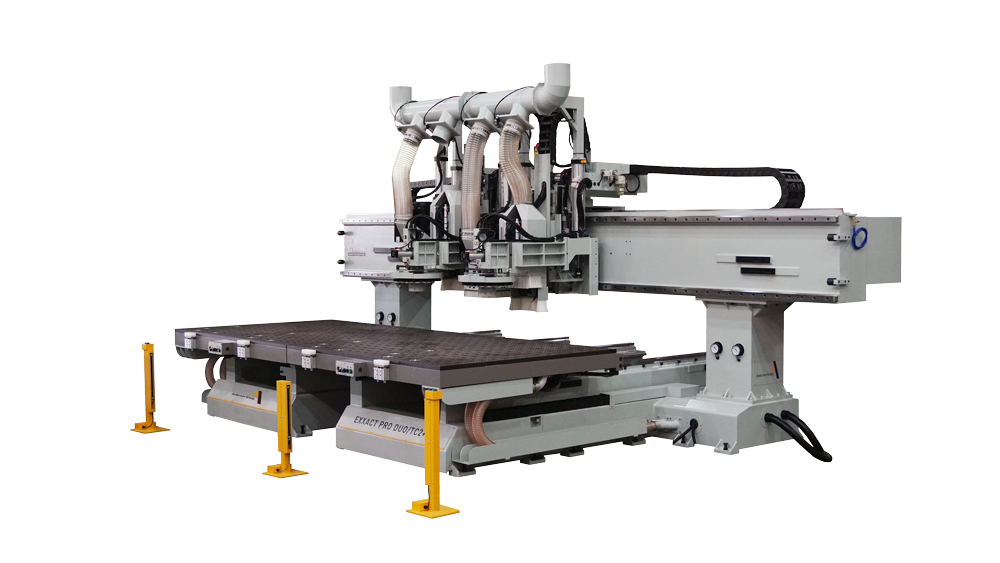

PRO DUO TC2+D2
- Twin tables
- Two 18 HP spindles, 10-position ATC each
- Two 5+5 boring blocks
- Routing and drilling in one pass
PRO DUO IPT-TC2
- Twin tables
- Two 18 HP spindles, 10-position ATC each
- FANUC 31i-MB+ control
- Independent Process Technology
FULL SPECIFICATIONS
| Basic Configuration | PRO DUO TC2 | PRO DUO TC2+D2 | PRO DUO IPT-TC2 |
|---|---|---|---|
| Best for | High-volume routing and nesting | Routing plus drilling (cabinet and case parts) | Running two different parts at once |
| Machine type | Fixed bridge, twin moving tables | Fixed bridge, twin moving tables | Fixed bridge, twin moving tables |
| Table size (each) | 1840 x 1600 mm (72.4 x 63 in) | 1840 x 1600 mm (72.4 x 63 in) | 1840 x 1600 mm (72.4 x 63 in) |
| Vacuum zones | 2 per table (4 total), M-code controlled | 2 per table (4 total), M-code controlled | 2 per table (4 total), M-code controlled |
| Positioning pins | 16 internal pop-up pins + 6 external stops | 16 internal pop-up pins + 6 external stops | 16 internal pop-up pins + 6 external stops |
| Stroke of X-axis | 4400 mm (174 in) | 4400 mm (174 in) | 4400 mm (174 in) |
| Stroke of Y-axis | 1775 mm (70 in) | 1775 mm (70 in) | 1775 mm (70 in) |
| Stroke of Z-axis | 350 mm (14 in) | 350 mm (14 in) | 350 mm (14 in) |
| Rapid travel speed X / Y | 80 M/min (3150"/min) | 80 M/min (3150"/min) | 80 M/min (3150"/min) |
| Rapid travel speed Z | 30 M/min (1180"/min) | 30 M/min (1180"/min) | 30 M/min (1180"/min) |
| Maximum rapid traverse | 113 M/min (4448"/min) | 113 M/min (4448"/min) | 113 M/min (4448"/min) |
| Axis drive | Helical rack & pinion X/Y, ball screw Z | Helical rack & pinion X/Y, ball screw Z | Helical rack & pinion X/Y, ball screw Z |
| SPINDLE DATA | |||
| Router spindles | 2, CNC variable head spacing 300 to 1800 mm | 2, CNC variable head spacing 300 to 1800 mm | 2, CNC variable head spacing 300 to 1800 mm |
| Spindle type | Anderson 4-pole air-cooled | Anderson 4-pole air-cooled | Anderson 4-pole air-cooled |
| Power (each) | 18 HP (S6) / 15 HP (S1) | 18 HP (S6) / 15 HP (S1) | 18 HP (S6) / 15 HP (S1) |
| Spindle speed | 1,000 to 22,000 RPM | 1,000 to 22,000 RPM | 1,000 to 22,000 RPM |
| Clamping system | HSK 63F | HSK 63F | HSK 63F |
| Ride-along tool changer | 10 positions per spindle | 10 positions per spindle | 10 positions per spindle |
| Boring block | Not included | 2 x 5+5 boring blocks | Not included |
| Tool length measurement | Automatic touch-off, per spindle | Automatic touch-off, per spindle | Automatic touch-off, per spindle |
| Controller | FANUC 0i-MF+ with PC front end | FANUC 0i-MF+ with PC front end | FANUC 31i-MB+ with PC front end |
| Programs run at once | 1 | 1 | 2 (Independent Process Technology) |
| Drilling in the same setup | No | Yes | No |
| Operator interface | AG-MVP + handheld pendant | AG-MVP + handheld pendant | AG-MVP + handheld pendant |
| Vacuum pumps | 2 x 9 HP Becker, 168 cfm @ 24" Hg each | 2 x 9 HP Becker, 168 cfm @ 24" Hg each | 2 x 9 HP Becker, 168 cfm @ 24" Hg each |
| DIMENSIONS | |||
| Floor area | 6000 x 3375 mm (236 x 133 in) | 6000 x 3375 mm (236 x 133 in) | 6000 x 3375 mm (236 x 133 in) |
| Height | 2800 mm (110 in) | 2800 mm (110 in) | 2800 mm (110 in) |
| Net machine weight | 8200 kg (18,100 lbs)* | 8200 kg (18,100 lbs)* | 8200 kg (18,100 lbs)* |
| OPTIONS & INCLUDED | |||
| M100 tool change look-ahead | Included | Included | Included |
| Safety fences + light barriers | Included | Included | Included |
| 24 HP liquid-cooled spindle | Optional | Optional | Optional |
| 12-position tool changer | Optional | Optional | Optional |
| Fully rotational C-axis | Optional | Optional | Optional |
| 4-direction spindle nose air blast | Optional | Optional | Optional |
| Movable PC control console | Optional | Optional | Optional |
| Vacuum pump upgrades | Becker, Atlas Copco, Dekker, Travaini | Becker, Atlas Copco, Dekker, Travaini | Becker, Atlas Copco, Dekker, Travaini |
*Net weight excludes vacuum pumps. Specifications subject to change. Contact Anderson America for the current configuration sheet.
EXXACT PRO DUO FAQ
The EXXACT PRO DUO is a heavy-duty fixed bridge CNC router from Anderson America with two moving tables and two 18 HP HSK 63F router heads. It is built for high-volume production of wood, composite, plastic, and aluminum parts, and runs on a FANUC control.
With two independent 1,840 x 1,600 mm tables, the operator unloads and reloads one table while the heads cut on the other. The tables then swap, so the spindles rarely wait on loading. Two heads with CNC-controlled spacing can also cut matching parts at the same time.
All three share the same twin tables and two 18 HP router heads. The TC2 is the core routing machine. The TC2+D2 adds two 5+5 boring blocks for drilling in the same setup. The IPT-TC2 upgrades to a FANUC 31i-MB+ control with Independent Process Technology, so each head can run its own program at the same time.
The TC2 and TC2+D2 run a FANUC 0i-MF+ control, and the IPT-TC2 runs a FANUC 31i-MB+. Every model has a Windows PC front end with Anderson’s AG-MVP operator interface and accepts standard G-code from any CAD/CAM package, including Cabinet Vision, Microvellum, AlphaCAM, Fusion 360, Enroute, and Mozaik.
Standard machines ship with two 9 HP Becker dry rotary vane pumps, delivering a combined 336 cfm at 24" Hg. Upgrades include a third Becker pump, Atlas Copco claw pumps, Dekker and Travaini liquid ring pumps for harsh environments, and Atlas Copco VSD+ rotary screw pumps for the lowest energy cost.
Anderson America installs the machine and provides up to three days of onsite operator, maintenance, and control training. Original purchasers get free lifetime phone support and free remote diagnostics. A U.S. parts inventory, field technicians, and the Anderson Knowledge Center back every EXXACT PRO DUO.
