EXXACT DUO SERIES

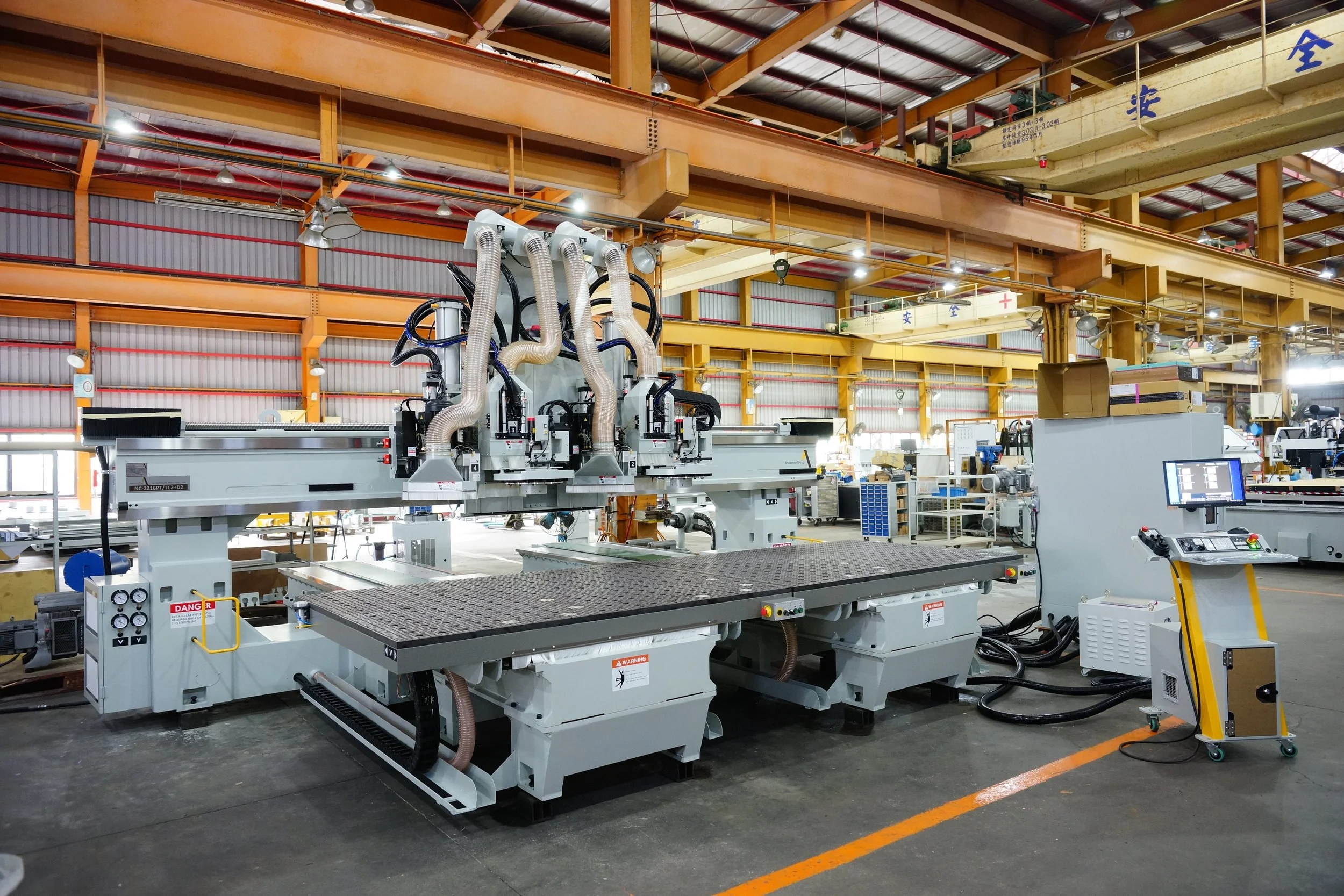

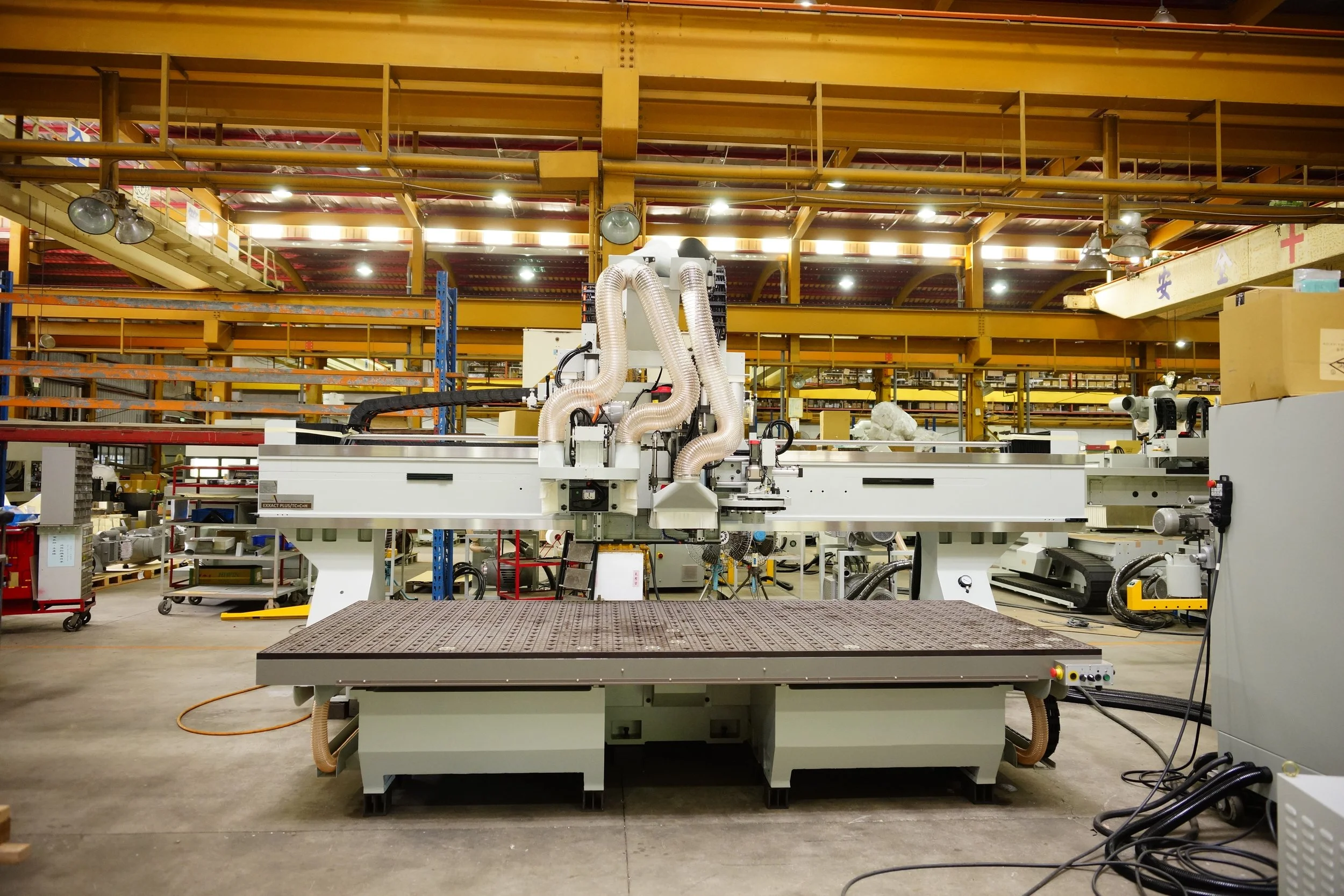

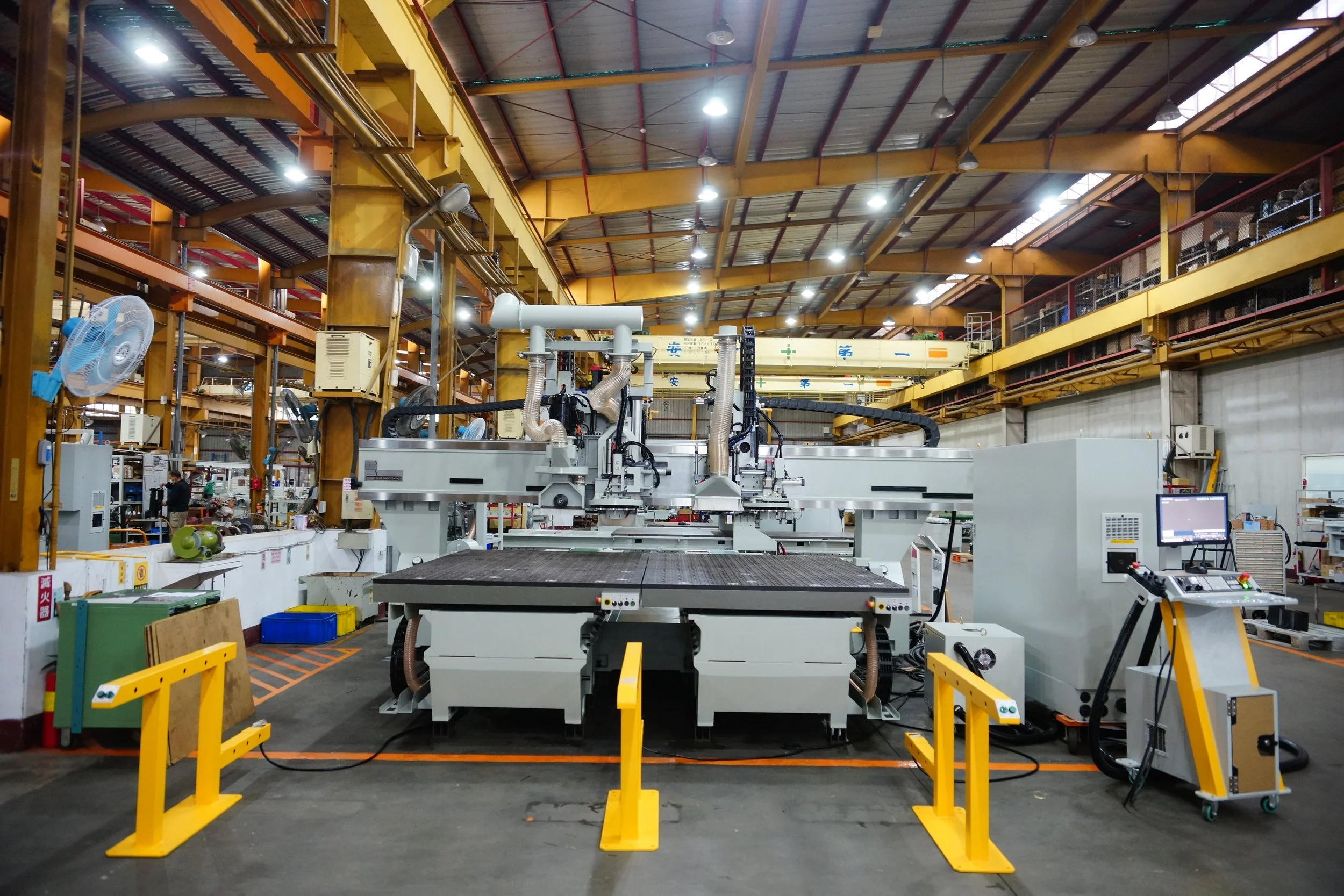

Introducing the Anderson EXXACT Duo Series
Discover the power of two with the Exxact Duo Series. Designed with two spindles and dual tables to boost your production capabilities, this series brings together high-speed and precision machining in one robust package.
Double the Precision, Double the Performance
The Exxact Duo Series, equipped with FANUC control & electronics systems, offers high precision and superior performance, doubling your productivity. Its robust construction and advanced features make it a reliable addition to any manufacturing process.
Key Features:
Dual Spindle Design: The ANDI HSK-63F dual spindle provides high-speed and high-precision machining.
Versatile Material Processing: Ideal for wood, MDF, plywood, plastic, honeycomb aluminum, and solid surface materials.

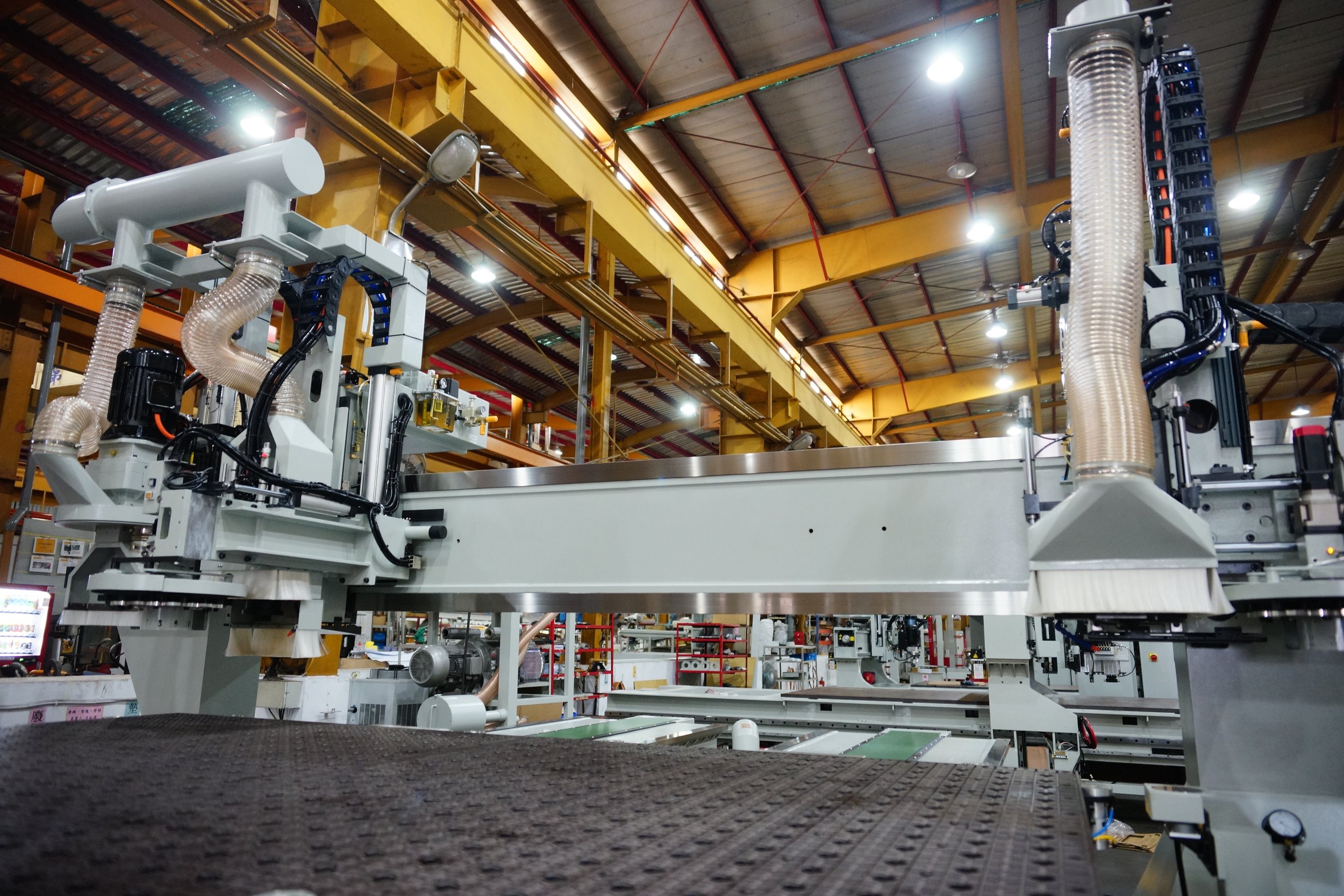

Anderson Traveling Gantry Design: Ensures effortless machine access.
Modular Design: Available in a range of formats and sizes.
Ethernet Options: Enables remote technical support.
Take Your Machining to the Next Level with the Anderson EXXACT Duo Series
Elevate your manufacturing capabilities with the Exxact Duo Series. Contact us today to discover how the Exxact Duo Series can enhance your production process.
Detailed Specifications of the EXXACT Duo Series
Explore the comprehensive tables below to understand the capabilities of the EXXACT Series Moving Table 3-axis machining centers. These tables provide a clear, easy-to-understand overview of the key specifications, features, and additional options of our high-performance CNC machine.
From material versatility to the unique Anderson fixed bridge and moving table design, every aspect of the EXXACT Series is designed with your needs in mind. Explore the tables to understand how the EXXACT Series can elevate your machining capabilities.
Remember, our team is always ready to assist you with any questions or custom requirements you may have. Don't hesitate to reach out to us for more information.
| Basic Configuration | EXXACT DUO |
|---|---|
| No. of tables | 2 |
| No. of vacuum zones per table | 1 |
| Table size X | 2 x 1840 mm (2 x 72.4 in) |
| Table size Y | 2 x 1600 mm (2 x 63 in) |
| Stroke of X-axis | 4400 mm (174 in) |
| Stroke of Y-axis | |
| Stroke of Z-axis | 350 mm (14 in) |
| Rapid travel Speed in X | 80 M/min (3150“/min.) |
| Rapid travel Speed in Y | 80 M/min (3150“/min.) |
| Rapid travel Speed in Z | 20 M/min (1181“/min.) |
| Spindle Data | |
| Power | 18 HP / 24 HP |
| Max. Speed (rpm) | 24000 |
| Clamping system | HSK-63F |
| Ride along tool changer | 10 / 12 |
| Boring block | 5+5 or 10+7 |
| Vacuum pump | 10/25/40 HP |
| Controller | FANUC 0i |
| Dimensions: Floor Area | 6000 x 3375 mm (236 x 133 in) |
| Height | 2800 mm (110 in) |
| Weight | 9300 kg (20,500 lbs.) |
| OPTIONAL | |
| Vector Spindle HSK 63-E | optional |
| Reverse Air Flow | optional |
| Bar-Code Reader | optional |
| C-axis | optional |
| Gantry Offload Pusher | optional |
| Automatic Loading | optional |
